Magimix Seal Food Processor MicroSwitch, Robot Coupe Seal

Description:

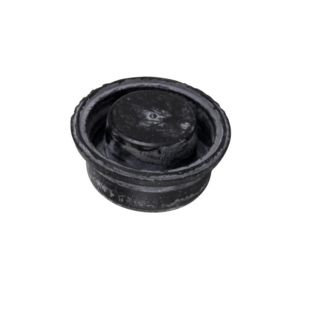

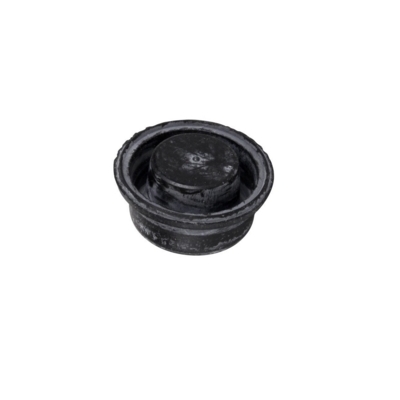

Magimix 500527s Rubber Seal only (for Microswitch 19112)

This is the seal which is found on the top casing of the machine - little round hole -  the bowl Handle rod goes into, See Pencil test

If this gets damaged or worn out it will need to be replaced, this should be done by a electrician, Unplug the machine, turn upside down, take the 4 rubber feet off the base, undo the 4 screws (5000 or 4000 some have only 2 and are hinged), there are two screws holding the Microswitch undo and replace the seal ring.

Some of the 3000, 4000 and 5000 machines - the post inside is very small... so replacing the complete microswitch helps the safety rod work more efficiently.Magimix 1800, R1, Magimix food processor made by robot coupe, Magimix 2000, 3000, 4000, 5000, 4100 5100

Magimix 4000, 4100 - 16415 16416 16457 16458 16466 16474 16475
Magimix 4150 - 18294.
Magimix 5000, 5100 - 16515 16516 16557 16558 16561

Robot Coupe serial numbers R101a 146 582,   R101 xl  675, R201 002 676, R201 ultra 006 677, R211 260 678, R211 ultra 261 679.

BBS ltd offers a fitting service for this part

Please see fixed repair cost Here
