Magimix Capacitor 60UF 600018 Motor Running Slow or Buzzing

Description:

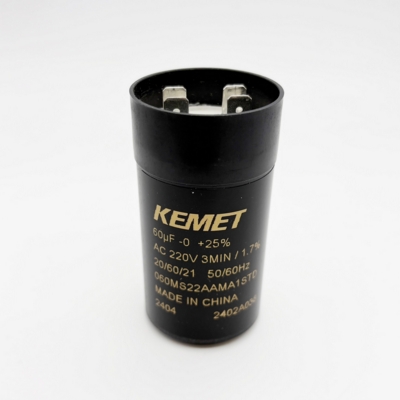

Magimix 600018 Capacitor - 60uf +25% AC220v, 7cms long x 3.5cms.

A start capacitor alters the current to one or more winding of a single phase A.C. Induction motor to create a rotating magnetic field. If your motor is running Slow or just Humming and not going round, it could be the capacitor, this can be caused by running in a damp atmoshere or continous use ie commercial.

These are fairly easy to change by a competant person, with a TORX 20 screwdriver, unplug and turnover machine, remove the 4 rubber feet and undo the screws, once inside you will see three wires with plugs leading to the Capacitor (take a photo) pull these off, replace Capacitor, put leads back on (as per photo) carefully screw base on.

Magimix 4200 - 18400 18402 18420 18421 18426 18427 18428 18429
Magimix 4200 XL - 18403 18404 18422 18432, 18434 18435 18434 17470 18471 18473 18474 18475
Magimix 4150 -18294.
Magimix 5200 - 18500 18501 18509 18520 18526 18527 18529 18528 and 18521.
Magimix 5200xl - 18514 18515 18519 18522 18523 18524 18531 18532 18533 18534 18535 18536 18537 18584 18585 18590 18591 18592
Pattissier - 18615 18616 18617 18618 18619

Magimix Cuisine systeme 4100, 5100, 5100G 16515 16516 16557 16558 16561 16415 16416 16457 16458
16466 16474 16475

This product has a Magimix Three year guarantee for domestic use

Robot coupe serial numbers (the plate is under the machine , should start with a letter then 020, 146, 675, 002, 676, 006, 677, 260, 678, 261, 679)

unsure ring 01252 727755

BBS ltd offers a fitting service for this part
